1.Raised access floors

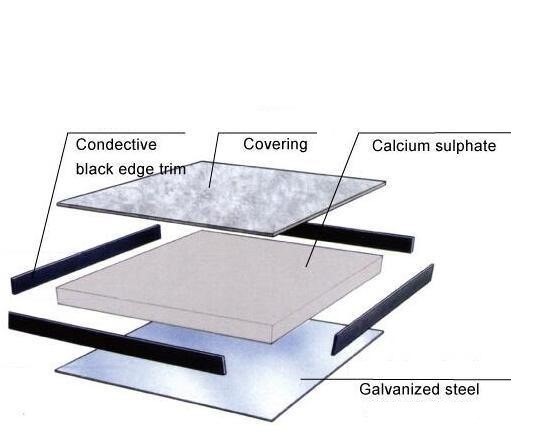

GOLDEN M panel consists of mineral support material inert monolayer original KNAUF INTEGRAL, density ≥ 1600 kg / m3 with a nominal thickness of 30 mm, of calcium sulphate bound with fibers with high mechanical resistance. The material is certified to class A1 according to EN 13501-1. It also has several important certifications in the environmental field, such as IBR or VOC.
APPLICATION USE:
Offices-Private Buildings -Public Buildings-Libraries-Banks Museums-Computer Rooms-Electric Room.
Mechanical properties:
|
Part No. |
Concentrated Load center of the panel |
Concentrated Load center of the side |
Ultimate load |
Uniform Load |
|
G.M calcium sulphate panel |
5 KN |
3.5 KN |
14 KN |
22 KN |
