3. Raised access floors

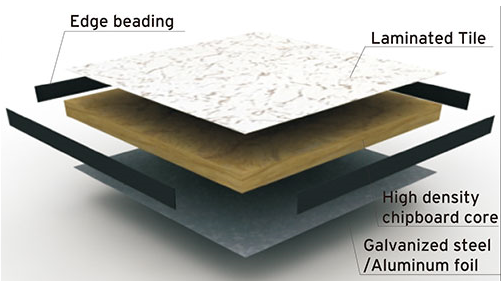

GOLDEN M panels are made of a high-density wooden core, with a high density of 700 kg\m3, perimetral edge abs 0.5 mm, dimension 600mm x 600mm, and 3.8 mm height. The bottom of these cores is glued to a galvanized steel base. The edges of the panel are protected with conductive PVC coating.
Application Use:
Offices - private buildings - public buildings - libraries - banks - museums - computer rooms - electricity room.
Mechanical properties:
|
Part No. |
Concentrated Load |
Design load |
Ultimate load |
Uniform Load |
Impact Load |
|
G.M WOOD panel |
3 KN |
5 KN |
9.6 KN |
9 KN |
570 N |
