2. Raised access floors

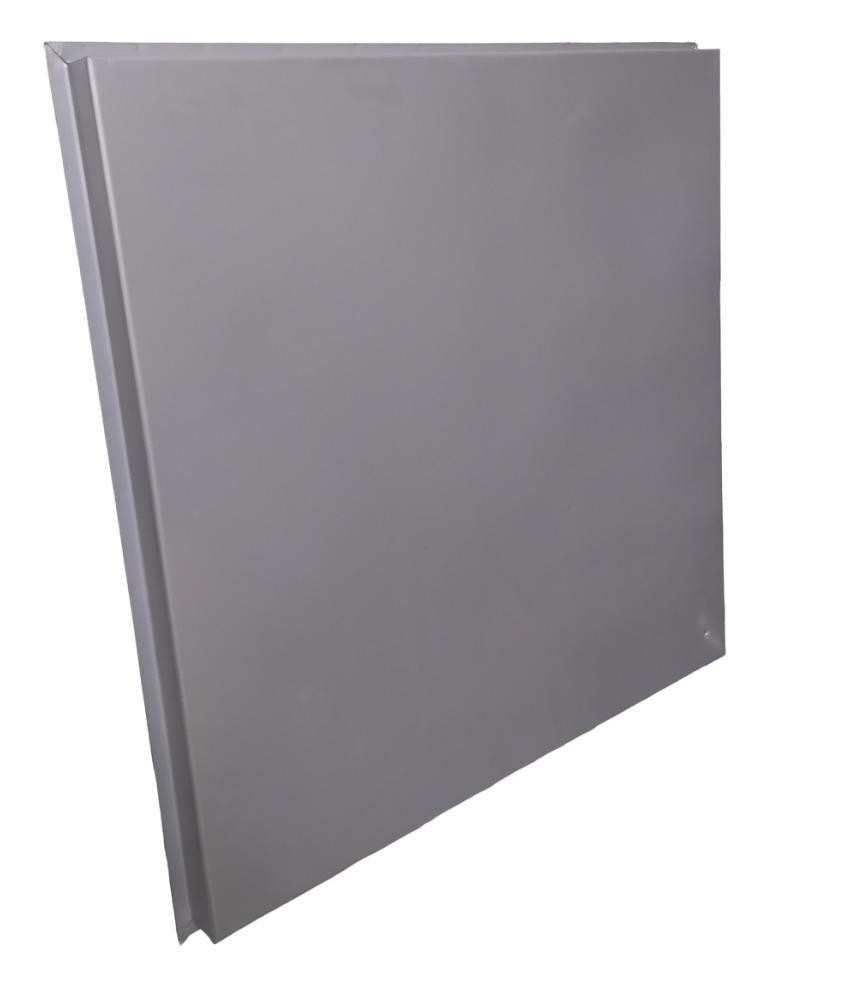

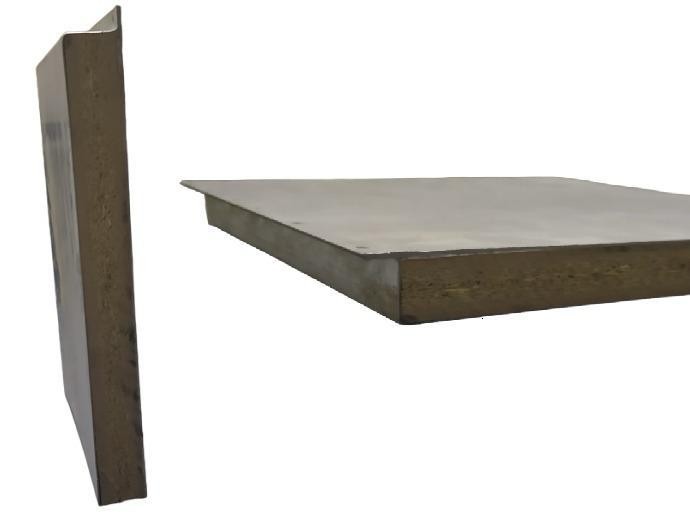

GOLDEN M panels are made of a high-density wooden core, with a high density of 700 kg\m3, dimension 600mm x 600mm, and 3.8 mm height. The bottom of these cores is glued to a galvanized steel base. the surface can be galvanized steel or aluminum foil.
APPLICATION USE:
Offices-Private Buildings -Public Buildings-Libraries-Banks Museums-Computer Rooms-Electric Room.
Mechanical properties:
|
Part No. |
Concentrated Load |
Design load |
Ultimate load |
Uniform Load |
Impact Load |
|
G.M WOOD panel |
3 KN |
5 KN |
9.6 KN |
9 KN |
570 N |
